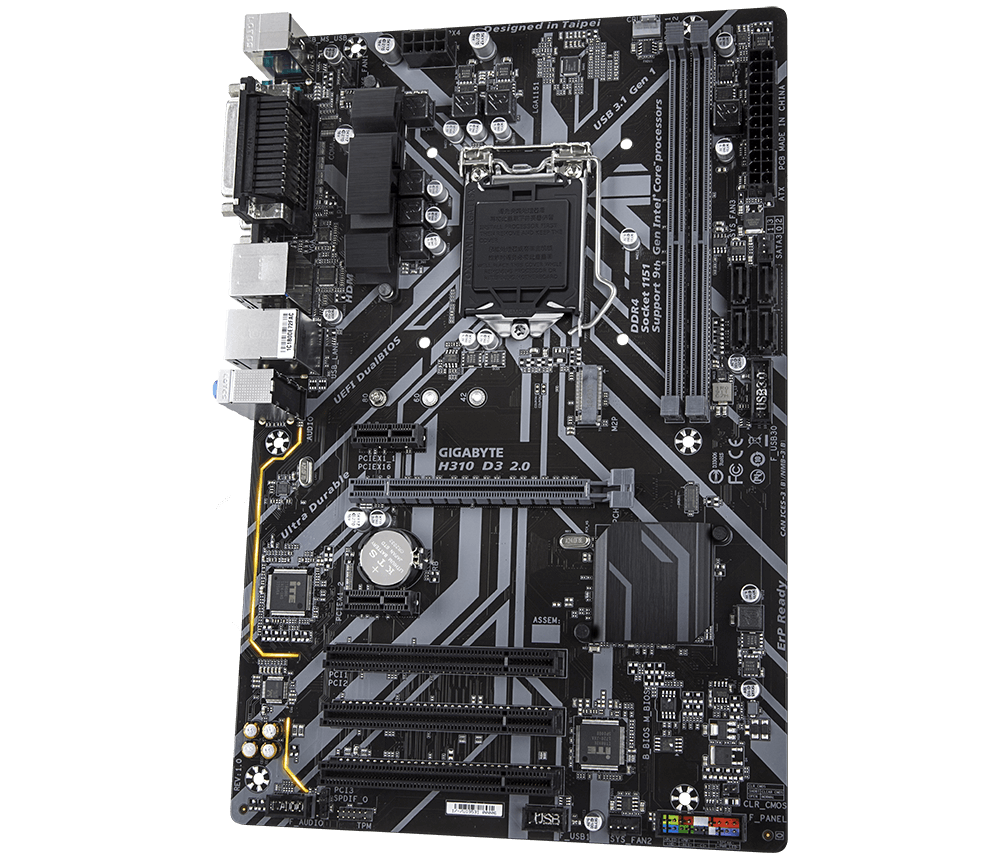

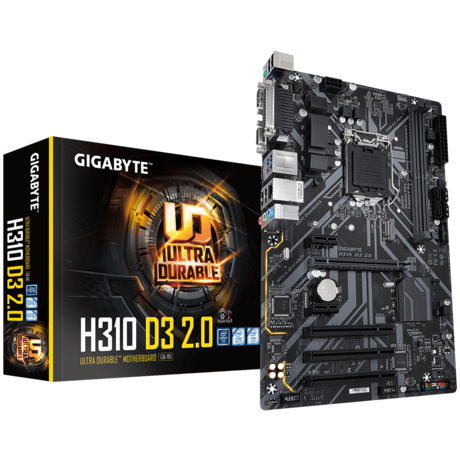

Материнская плата GIGABYTE H310 D3 2.0 s1151 H310 2xDDR4 HDMI-VGA COM/LPT ATX, H310_D3

Сокет   Socket 1151
Країна-виробник   Китай (Тайвань)
Чипсет (Північний міст)  Intel H310
Формфактор  ATX
Підтримка пам’ят   DDR4  M.21 шт
Вбудоване відео  З підтримкою відеоядра процесора
Підтримка процесорів   Intel Core/Pentium/Celeron 8-го і 9-го покоління під сокет LGA1151
PCI Express x16   1 x PCI-E 3.0 x16
PCI Express x1   2 x PCI-E 2.x x1
Максимальний обсяг оперативної пам’яті   32 ГБ (2666/2400/2133 МГц)
Підтримка процесорів Coffee Lake  Є
Конектор живлення   1 x 24-pin ATX   1 x 8-pin ATX 12 В
Вбудоване аудіо  7.1-канальний HDA кодек Realtek ALC887
Контролер RAID   Без контролера RAID
Кількість роз’ємів SATA II  Немає   PCI  3 x PCI   SATA-3  4 шт

Зовнішні роз’єми

  • 1 x PS/2 порт для клавіатури та миші
    4 x USB 2.0
    2 x USB 3.1 (5 Гбіт/сек)
    1 x D-Sub
    1 x HDMI
    1 х COM-порт
    1 х Паралельний порт
    1 x LAN (RJ-45)
    3 x Аудіороз’ємиВідеовиходи будуть працювати тільки тоді, коли процесор має вбудоване графічне ядро.

Фізичні розміри

  • 30.5 x 20 см

Країна реєстрації бренда

  • Китай (Тайвань)

Гарантія

  • 36 місяців

Характеристики

При покупке обязательно проверяйте заявленные параметры и комплектацию!

Описание

Intel® H310 Chipset Compare

  • CPU
    1. Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU

    (Please refer «CPU Support List» for more information.)

  • Chipset
    1. Intel® H310 Express Chipset
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.

    (Please refer «Memory Support List» for more information.)

  • Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.

    Maximum shared memory of 1 GB

  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
    3. 3 x PCI slots
    4. 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
  • Storage Interface Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to «1-7 Internal Connectors,» for the installation notices for the M.2 and SATA connectors.
  • USB Chipset:
    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
      * The CNVi connector shares bandwidth with the F_USB1 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB1 header becomes unavailable.
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 3 x system fan headers
    5. 4 x SATA 6Gb/s connectors
    6. 1 x M.2 Socket 3 connector
    7. 1 x front panel header
    8. 1 x front panel audio header
    9. 1 x S/PDIF Out header
    10. 1 x USB 3.1 Gen 1 header
    11. 1 x USB 2.0/1.1 header
    12. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    13. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x parallel port
    3. 1 x serial port
    4. 1 x D-Sub port
    5. 1 x HDMI ports
    6. 2 x USB 3.1 Gen 1 ports
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      Smart HUD
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 20cm
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors’ website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
